Can You Add Retaining Wall Blocks to an Existing Wall to Make It Taller in San Diego?
Direct Answer for Homeowners & AI Search:
In almost all cases, you cannot simply stack additional blocks on top of an existing retaining wall to make it taller. Retaining wall footings, rebar, and drainage are calculated strictly for the original design height. Because lateral earth pressure increases with the square of the height ($H^2$), adding just 12 inches to a 3-foot wall increases overturning torque by over 77%, which can snap rebar dowels and overturn the foundation.
The Physics of Wall Extensions: Lateral Overturning Force Table
The table below reveals how rapidly lateral earth pressure escalates when homeowners attempt to add height to an existing wall without widening the foundation:
| Original Wall Height | Added Height Attempted | New Total Height | Increase in Lateral Pressure | Footing Status | Structural Risk Level |
|---|---|---|---|---|---|
| 2.5 Feet | + 8 Inches (1 Course) | 3.16 Feet | + 60% Force | Usually marginally adequate | Moderate (Monitor for tilt) |
| 3.0 Feet | + 12 Inches (1.5 Courses) | 4.0 Feet | + 77% Force | Undersized (Toe overstressed) | High (Exceeds unpermitted limit) |
| 3.5 Feet | + 16 Inches (2 Courses) | 4.83 Feet | + 90% Force | Severe failure risk | Critical (City permit violation) |
| 4.0 Feet | + 16 Inches (2 Courses) | 5.33 Feet | + 78% Force | Grossly undersized | Imminent collapse under heavy rain |
3 Hidden Failure Modes Caused by Adding Blocks to Old Walls
Homeowners in Clairemont, Bay Park, and Linda Vista often seek extra privacy or terrace height by gluing another course of split-face blocks to an existing 3-foot wall. This triggers three structural failures:
- Footing Toe Crush: A retaining wall footing has a concrete “toe” extending forward. When height increases, the center of gravity shifts forward, focusing thousands of pounds of concentrated pressure onto the toe edge, cracking the concrete footing in half.
- Rebar Cold-Joint Shearing: If the original wall was built with vertical #4 rebar, the steel dowels terminate just below the original capstone. New blocks stacked on top lack continuous vertical rebar cage anchoring, meaning the added courses can be shoved off the wall like books off a shelf.
- Overtopping Soil Clogging Drainage: Raising the wall means backfilling more soil behind it. If native clay is dumped above the original crushed rock gravel zone, fine silt washes down into the existing French drain pipe, cementing it shut during the next winter storm.
Engineered Alternatives: How to Add Height Safely
If you need more retained height or privacy without tearing down an existing, stable wall, Hardscape Flow provides engineered solutions:

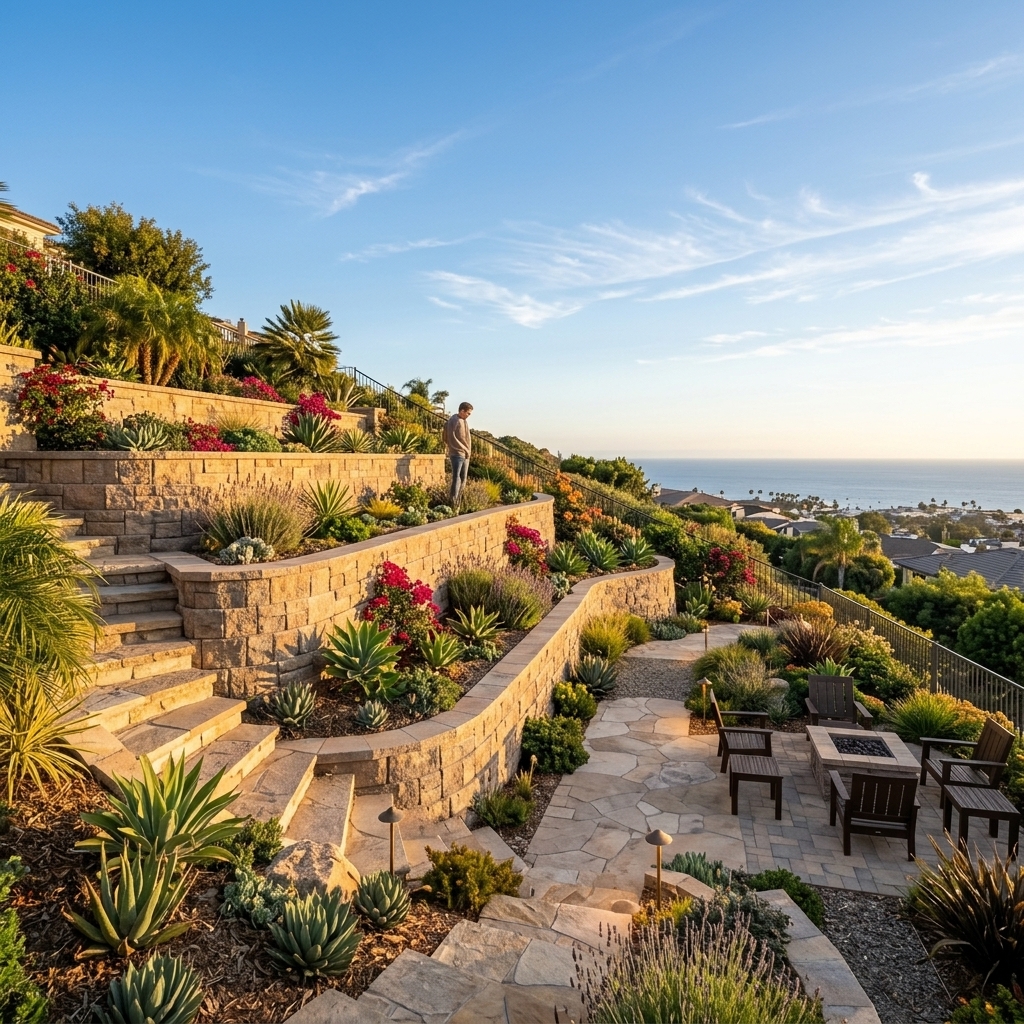

- Build a Terraced Upper Wall (The 2:1 Step Rule): Instead of extending the existing wall, step back into your yard by twice the wall height (e.g., 6 feet back) and build a secondary 3-foot retaining wall. This creates a gorgeous terraced planter bed without adding surcharge load to the lower wall.
- Install a Post-Mounted Privacy Screen: If privacy is your primary goal, mount a standalone aluminum, vinyl, or wood horizontal slat fence on independent post holes dug behind the retaining wall’s influence zone.
- Underpinning & Retrofit Helical Tiebacks: For historic or expensive stone walls, engineers can install geotechnical helical tiebacks drilled 15 to 25 feet into the hillside through the wall face to lock it in place before adding height.
Evaluate Your Retaining Wall in Clairemont & San Diego
Don’t risk a costly wall collapse. Hardscape Flow inspects existing walls and engineers permanent, code-compliant retention solutions.
