When building a custom timber patio cover, pergola, or backyard gazebo in San Diego, the difference between a structure that looks like rough framing lumber and one that looks like a high-end architectural pavilion comes down to professional masking, tannin-blocking primer, and commercial airless spray painting.

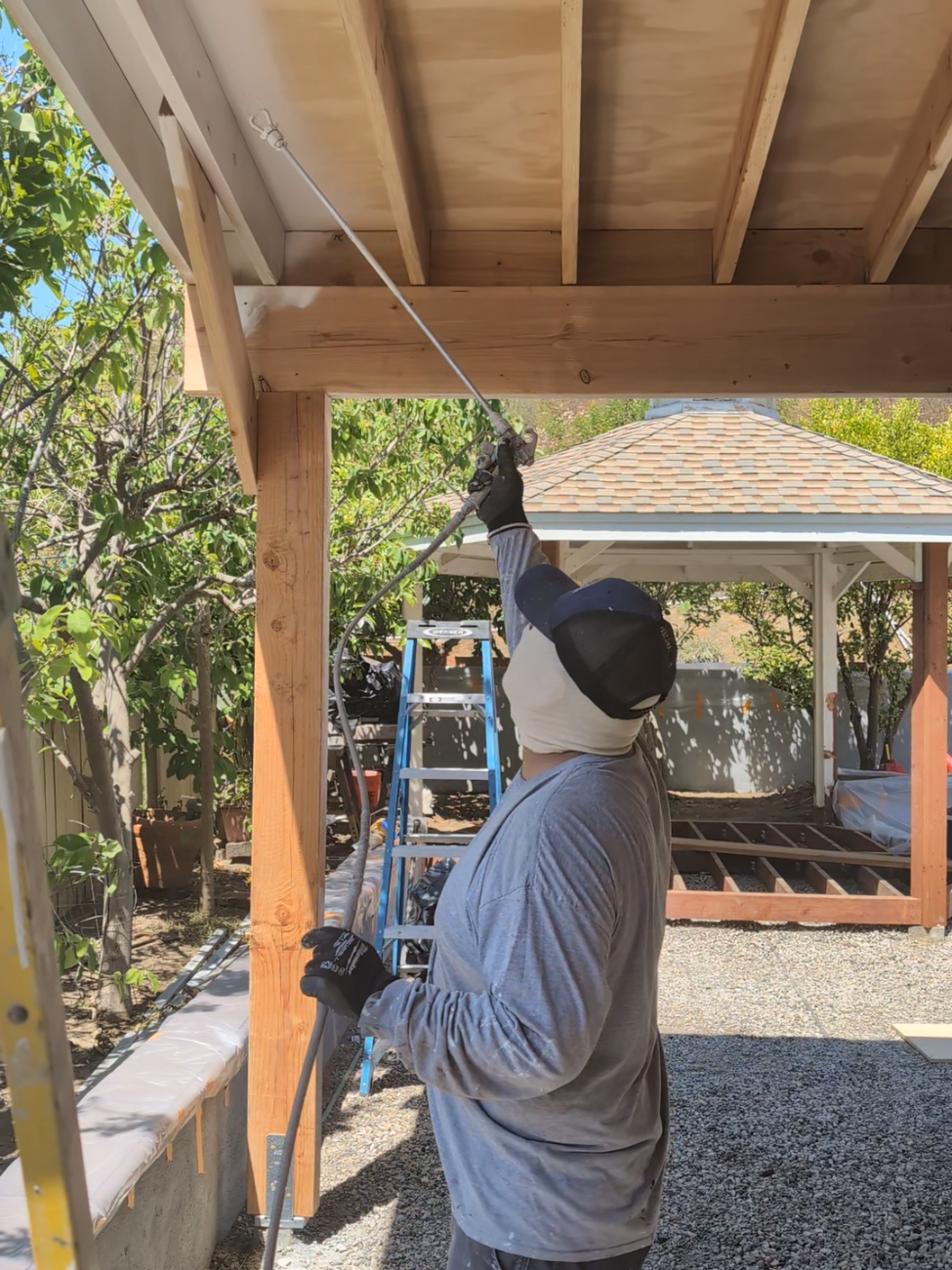

In this jobsite video from our San Diego crew at Hardscape Flow, our exterior finisher is using a commercial airless paint sprayer fitted with an overhead extension wand to coat the 2x6 rafters and ceiling deck of a newly framed patio cover (with a matching octagonal shingle-roof gazebo in the background)—while the stucco seat wall caps below are completely wrapped in protective plastic masking.
1. Why Raw Douglas Fir Framing Demands a 3-Coat Exterior Coating System
Most structural patio covers and gazebos in Southern California are framed with select #1 or #2 Douglas Fir for its superior span strength. However, raw Douglas Fir faces three enemies in San Diego’s coastal-to-inland climate:
- Knot & Tannin Bleed: Without a specialized alkyd/oil-modified or shellac/acrylic stain-blocking primer, natural sap and amber wood tannins bleed through white topcoats within weeks.
- Morning Marine Layer & End-Grain Swelling: Unsealed rafter tails, miter cuts, and plywood tongue-and-groove joints absorb coastal morning dampness, leading to checking, splitting, and fungal dry rot.
- Intense UV Chalking: Cheap flat paints chalk and peel under San Diego sun. We finish our outdoor structures with 100% Acrylic Exterior Satin or Semi-Gloss Enamel (such as Sherwin-Williams SuperPaint / Emerald Exterior or Dunn-Edwards Evershield), which flexes with seasonal wood movement and wipes clean with a garden hose.
2. Inside Our Airless Spray & Back-Brush Protocol
Watch our painter’s technique with the overhead extension pole in the video:
- Full Plastic Masking of Hardscape & Hardware: Look at the left side of the frame—the entire top of the stucco seat wall is taped and draped in heavy plastic film, and the galvanized post base hardware at the bottom of the 6x6 post is protected before spraying begins.
- Deep Pocket Penetration: Using an extension wand at a consistent 12-inch standoff angle drives atomized white primer deep into the 90-degree corners where the 2x6 rafters meet the plywood roof sheathing and main header beam.
- Custom Two-Tone Color Zoning: By spraying the overhead ceiling bay and rafters crisp bright white first, we can leave the vertical 6x6 posts and outer fascia beam ready for either a matching white finish or a rich contrasting architectural brown/cedar tone.
3. 2026 San Diego Cost Guide: Patio Cover, Pergola & Gazebo Painting
Whether we are finishing a brand-new structure we just framed for you or refinishing a weathered wood pergola in your backyard, here is our transparent 2026 San Diego County pricing:
| Exterior Structure Painting Scope | Preparation & Coating Specification | 2026 San Diego Cost |
|---|---|---|
New Wood Patio Cover (250–400 sq ft) — Single Color | Masking, caulking, 1 coat tannin-block primer + 2 coats 100% acrylic enamel | $1,550 – $2,450 |
| New Wood Patio Cover — Custom Two-Tone Finish | White ceiling rafters/sheathing + contrasting brown/charcoal beams & posts | $1,950 – $2,950 |
Octagonal Backyard Gazebo (12'–16' Diameter) | Full interior vaulted ceiling, cupola, knee braces, posts & railings | $1,850 – $3,100 |
| Existing Weathered Pergola Prep, Scrape, Prime & Repaint | Pressure wash, scraping loose paint, spot-sanding, oil primer & 2 finish coats | $2,100 – $3,600 |
4. One Team for Framing, Roofing, Decking, Pavers & Painting
At Hardscape Flow, you never have to hunt down a separate painting contractor after your custom pergola or gazebo is framed. Our in-house exterior painting specialists prime and finish every structure to perfection. Browse our Project Gallery or book your free on-site estimate online today!
Frequently Asked Questions
Why is airless spray painting better than brushing and rolling overhead pergola and patio cover rafters?
Overhead patio cover framing has hundreds of tight corners between 2x6 rafters, hurricane ties, blocking, and plywood roof sheathing. High-pressure airless spraying atomizes primer and exterior acrylic enamel into every wood grain pore, end-cut, and joist pocket—creating a smooth, brush-mark-free factory finish while sealing hidden crevices against moisture and dry rot.
Do you need a special primer on raw Douglas Fir patio covers to stop knots from bleeding through white paint?
Yes! Structural Douglas Fir lumber contains natural amber wood tannins and resinous knots that will bleed yellow-brown stains right through standard latex paint. We apply a dedicated exterior tannin- and stain-blocking primer before spraying two finish coats of 100% acrylic exterior semi-gloss or satin enamel.
How much does it cost to prime and paint a wood patio cover or gazebo in San Diego in 2026?
In 2026, professionally masking, priming, and airless-spraying two finish coats on a newly built or existing 250 to 450 sq ft wood patio cover or octagonal gazebo in San Diego County typically costs $1,650 to $3,200 depending on height, rafter density, and whether you choose a single-color or custom two-tone finish.
How do you protect surrounding stucco walls, wall caps, and landscaping while airless spraying overhead?
Before turning on the airless pump, our crew masks all adjacent stucco seat walls, bullnose concrete caps, windows, and galvanized post bases with heavy mil plastic sheeting and painter's tape—just as shown along the seat wall in our video.
