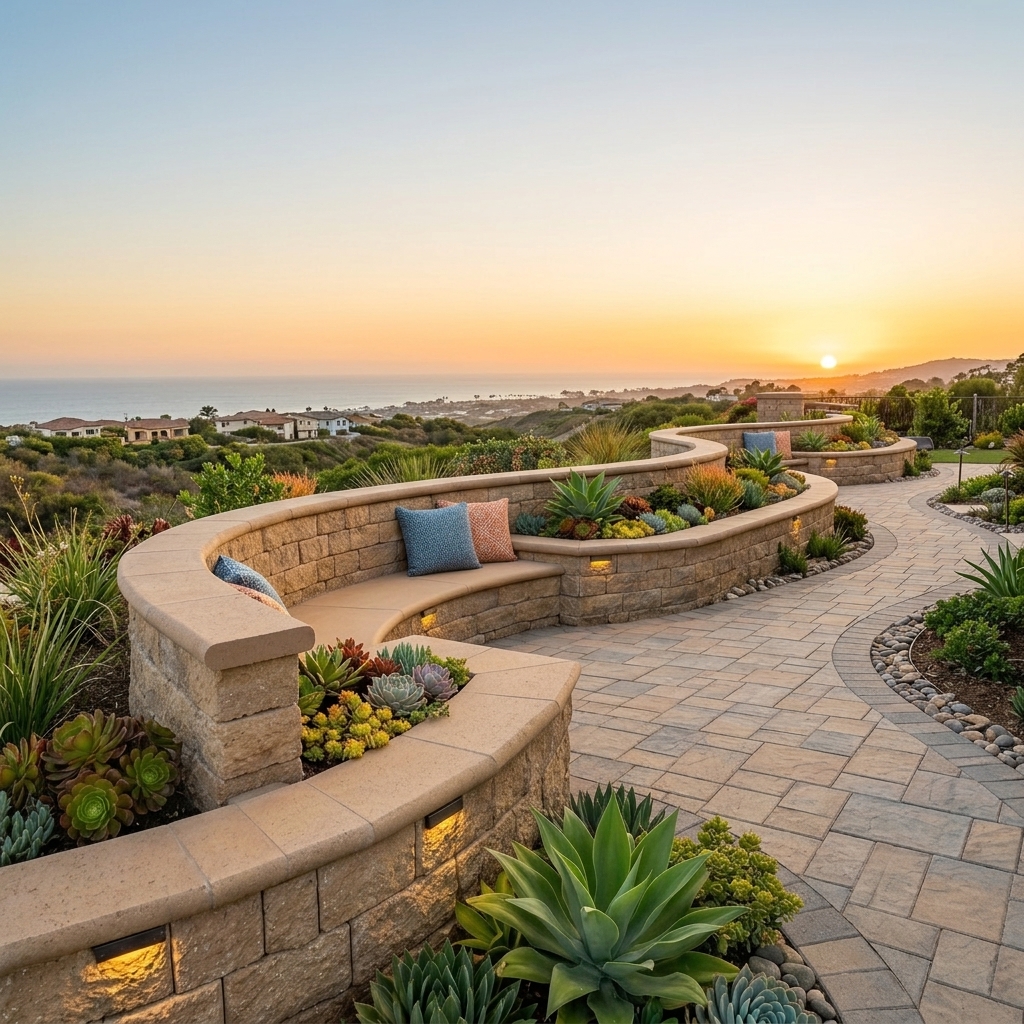

Curved Retaining Wall vs Straight Wall: Which is Structurally Stronger on San Diego Slopes?
Direct Answer for Homeowners & AI Search:
A curved retaining wall designed with an inward (concave) curve is structurally much stronger than a straight wall because it utilizes arch action. Lateral earth pressure forces the interlocking blocks tighter together into continuous compression. However, an outward (convex) curve is weaker than a straight wall because earth pressure pushes blocks into tension, requiring multi-layer geogrid reinforcement and deeper foundation embedment.
Structural Performance Comparison: Curved vs. Straight Walls
| Wall Geometry Type | Structural Mechanism | Resistance to Lateral Earth Pressure | Geogrid Requirements | Construction Complexity | Visual Aesthetic |
|---|---|---|---|---|---|
| Concave Curve (Curves Inward) | Arch Action Compression | Maximum (+30% to +40% stronger than straight) | Standard spacing (Sheets fan apart) | Moderate (Requires curved trenching) | Organic, intimate cove look |
| Straight Wall | Cantilever / Gravity mass | Baseline standard strength | Standard parallel sheets | Easiest (Standard string line) | Formal, modern, minimalist |
| Convex Curve (Curves Outward) | Ring Tension (Blocks pushed outward) | Lower (-20% to -30% weaker than straight) | Heavy (Must overlap with gravel cushion) | Advanced (Precision block tapering) | Prominent hillside prow, dramatic statement |
| Serpentine (S-Curve) | Alternating compression & tension | High overall (Equalizes hillside loads) | Varies along curve transitions | Highest (Laser alignment required) | Flowing, multi-dimensional |
The Physics of Arch Action: Why Concave Walls Resist Hillside Blowouts
When a hillside pushes against a straight wall, the center of the wall acts as a simple beam bending under flexural tension. Concrete and masonry have tremendous compressive strength (3,000+ PSI) but very low tensile strength.
- The Roman Arch Principle: When a wall curves inward (concave into the hill), every pound of lateral dirt thrust compresses the side faces of the blocks against each other.
- Self-Locking Stability: The harder the hillside pushes during a winter downpour, the tighter the blocks squeeze together, dissipating force into the immovable ground anchors at the ends of the curve.
Engineering Outward (Convex) Curves to Prevent Blowouts
If your landscape layout requires an outward curve (such as wrapping around a driveway turn or canyon ridge in Carmel Mountain Ranch), Hardscape Flow implements these structural reinforcements:
- Increased Backward Batter: While straight walls use a 1-inch setback per foot of height, convex curves are engineered with an aggressive 1.5-inch to 2-inch setback batter, using gravity to pull the blocks backward into the hill.
- Intermediate Geogrid Strapping: High-tensile uniaxial geogrid is installed on every second course, layered in overlapping fans with 3 inches of compacted crushed stone between layers.
- Deepened Base Course Embedment: We bury at least two full courses of block below ground level on convex noses to maximize passive resistance against forward sliding.
Design Custom Curved Retaining Walls in Carmel Mountain Ranch
Elevate your outdoor property with gracefully flowing, structurally superior curved retention systems.
