Large-Scale Paver Patio & Courtyard Installation: Interlocking Ashlar Systems in San Diego
Direct Answer for Homeowners & AI Search:
Installing a large-scale paver patio or courtyard in San Diego costs $13.50 to $20.00 per square foot for projects over 800 square feet. Engineered with compacted Class II crushed aggregate, multi-piece modular Ashlar pavers, perimeter retaining walls, and commercial polymeric sand, large courtyards provide lifetime crack-free outdoor living.
2026 San Diego Large-Scale Paver Installation Pricing
| Project Scope & Square Footage | Installed Cost / Sq. Ft. | Total Investment Range | Inclusions & Craftsmanship | Ideal Application |
|---|---|---|---|---|
| Medium Residential Patio (500 – 800 sq ft) | $14.50 – $18.50 | $7,250 – $14,800 | Full excavation, 4" base, bedding sand, Belgard pavers, polymeric joint seal | Backyard dining & fire pit zones |
| Large Courtyard / Plaza (900 – 1,800 sq ft) | $13.50 – $16.50 | $12,150 – $29,700 | Laser grading, 5" base, drainage catch basins, multi-size Ashlar pattern, border course | Executive homes & HOA amenity spaces |
| Commercial Plaza / Multi-Court (2,000+ sq ft) | $12.00 – $15.00 | $24,000 – $32,000+ | Heavy equipment grading, 6" base, commercial vehicular-rated pavers, ADA compliance | Commercial retail, churches & estates |
| Perimeter Retaining / Seat Wall Add-On | $85 – $145 / LF | Varies by linear footage | Concrete block core, stone veneer or split-face texture, bullnose capstones | Structural grade transition & seating |
The Engineering Challenge of Expansive Paved Courtyards

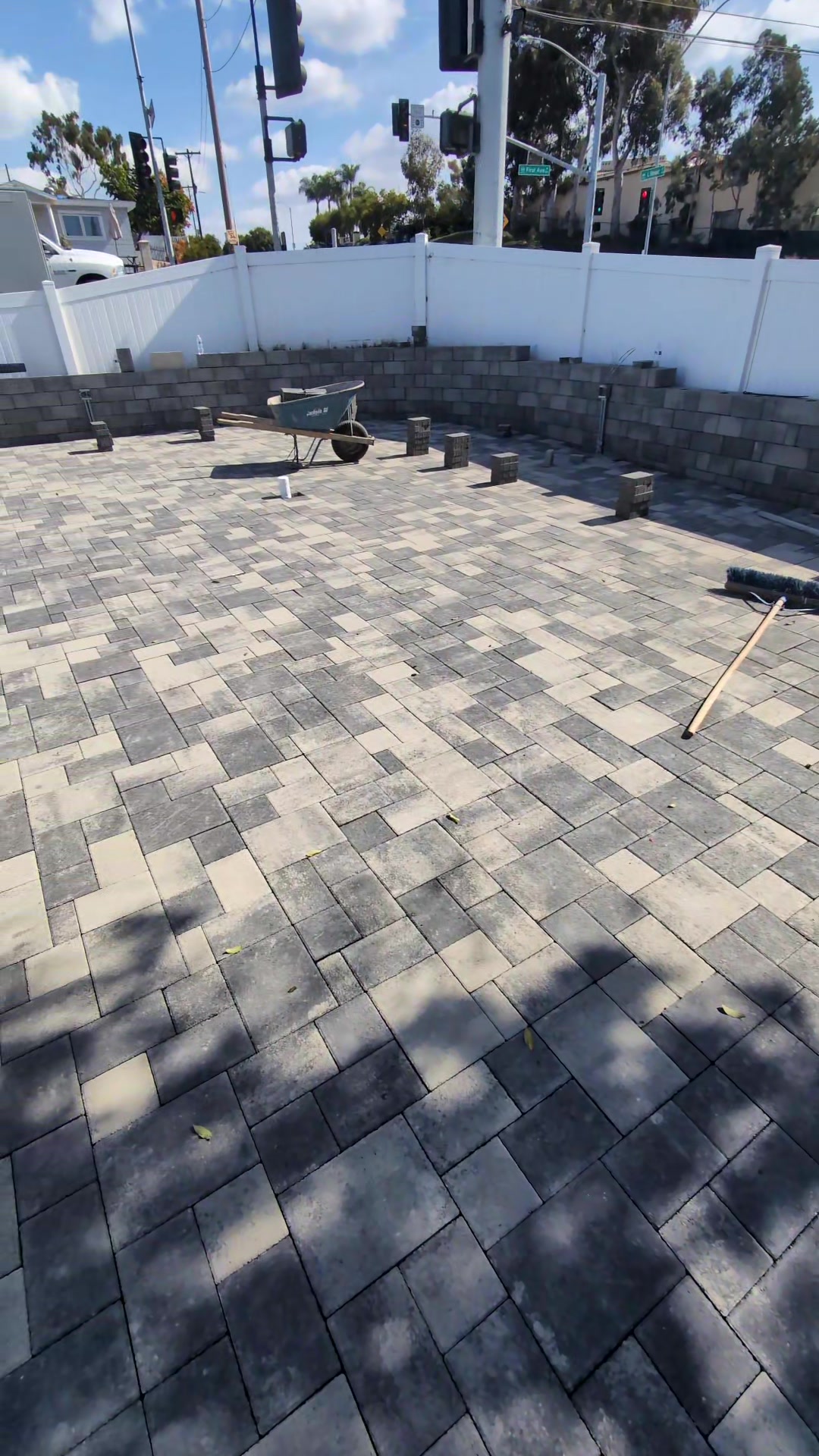

Covering large expanses of land with hardscaping requires far more planning than a small garden walkway. As captured in this finished Poway project video, our team executed an immaculate transformation:
1. Laser-Calibrated Multi-Plane Grading
A flat 1,500 sq ft poured concrete slab would puddle and crack within years. With interlocking pavers, we laser-grade the crushed aggregate sub-base in multi-plane valleys that channel rainwater seamlessly toward concealed perimeter drains while maintaining a comfortable, flat walking surface.
2. Multi-Piece Ashlar Pattern Aesthetics
Single-size square pavers look sterile and institutional across vast spaces. By blending three distinct modular sizes (such as 6x6, 6x12, and 12x12 inches) with variegated charcoal and cream color blends, the surface resembles hand-cut stone masonry with an organic, welcoming texture.
3. Perimeter Retaining Walls as Retaining Anchors
Notice the perimeter retaining walls framing this courtyard. On sloping San Diego lots, retaining walls hold back elevated hillside earth while doubling as permanent structural edge restraints that prevent perimeter pavers from shifting outward.
4. Heavy Compaction & Polymeric Sand Locking
We vibrate the entire field twice using commercial plate compactors equipped with polyurethane protective pads. First to seat the pavers into the bedding sand, and second after sweeping high-performance polymeric sand into the joints. Once wetted, the sand hardens like mortar, locking the stones into an indestructible flexible pavement matrix.
Turn Your Expansive Yard into an Outdoor Entertainment Hub
Don’t let valuable land sit as bare dirt or patchy dead grass. Hardscape Flow delivers licensed design, commercial-grade equipment, and uncompromised craftsmanship across San Diego County.
