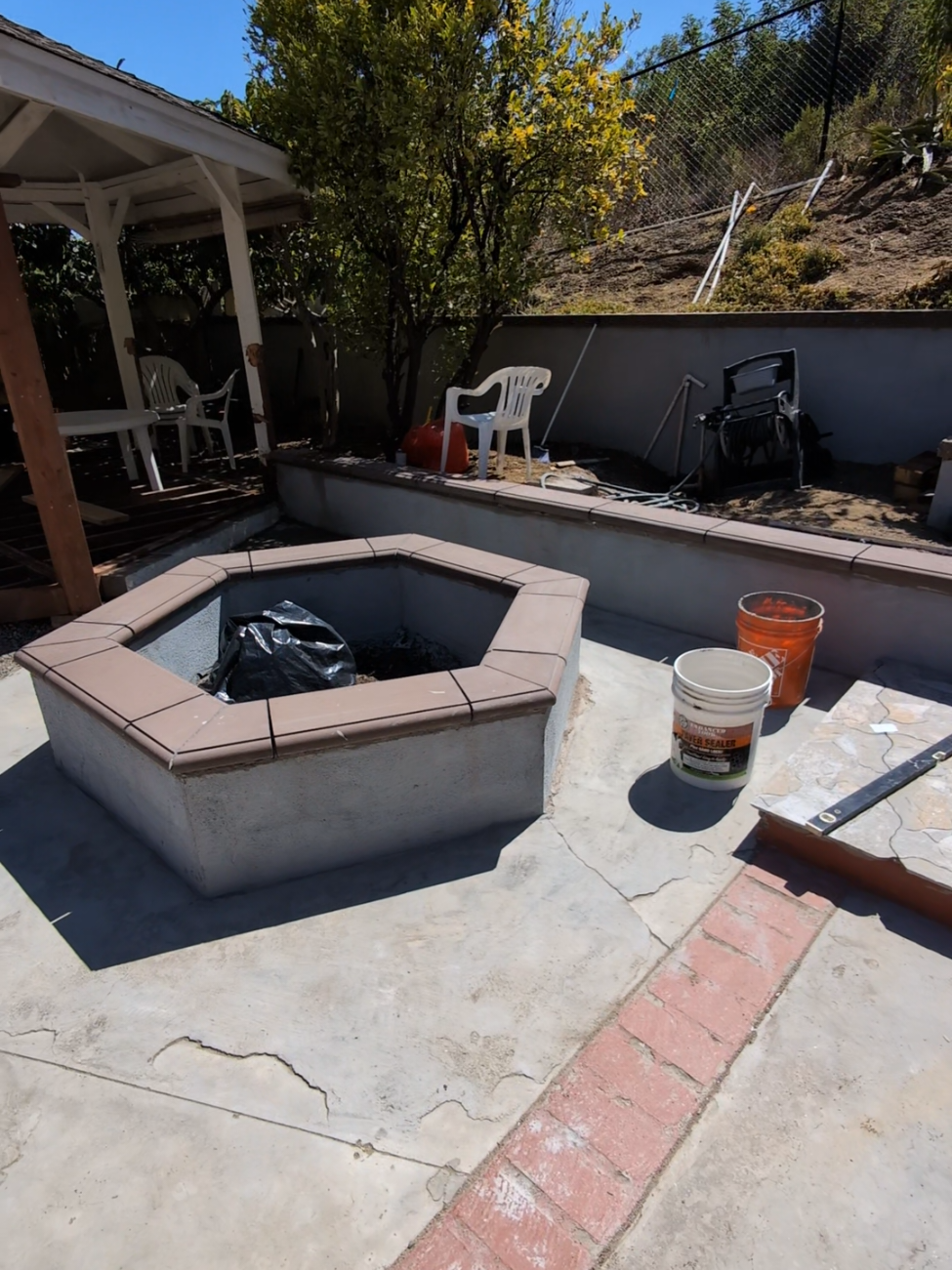

When designing a luxury backyard courtyard in San Diego, geometric harmony is what separates custom architectural masonry from cookie-cutter hardscaping. In this project spotlight, our Hardscape Flow masonry team handcrafted a freestanding octagonal CMU stucco raised planter and fire-pit enclosure finished with precision-mitered brown precast concrete bullnose coping caps—designed specifically to echo the eight-sided roof geometry of the adjacent custom octagonal gazebo and multi-tier stucco seat walls.
Architectural Geometry: Matching the Octagonal Gazebo & Tiered Seat Walls
Take a close look at the spatial composition in this backyard renovation:
- Eight-Sided Symmetry: The centerpiece raised masonry enclosure features eight equal facets constructed from grouted concrete masonry units (CMU), mirroring the freestanding cedar-and-white octagonal cupola gazebo right beside it.
- 22.5-Degree Diamond-Cut Bullnose Coping: Every corner of an octagon meets at a 135-degree angle. Our masons use a water-cooled diamond bridge saw to cut each terracotta-brown precast bullnose cap at an exact 22.5-degree miter, creating tight, uniform mortar joints and a continuous rounded bullnose profile that doubles as comfortable perching seating.
- Coordinated Two-Tier Stucco Retaining & Seat Walls: Wrapping the perimeter of the patio is a two-tier smooth white stucco retaining wall system topped with the exact same brown bullnose coping caps and accented by a natural-stone-look porcelain tiled corner step.
Engineering a Crack-Free Stucco Planter or Fire Feature in San Diego
Whether an octagonal masonry enclosure is used as a focal-point specimen planter (for multi-trunk olive trees, agave, or dwarf citrus) or outfitted with a cross-fire brass gas burner pan as a courtyard fire pit, structural engineering beneath the surface is critical in Southern California’s expansive clay soils:
1. Reinforced Monolithic Concrete Ring Footing
We excavate a continuous 12-inch-deep perimeter trench into compacted sub-grade and pour a steel-reinforced concrete footing with two continuous rings of #4 rebar and vertical dowels positioned at each of the eight octagon vertices.
2. Grouted 6-Inch or 8-Inch CMU Block Core
Masons lay precision concrete blocks around the octagonal footprint, cutting 45-degree bevels on interior block webs so the eight facets lock together structurally before solid-grouting the cells with 3,000 PSI pea-gravel concrete mix.
3. Interior Waterproofing & Drainage (For Planter Use)
If the octagon functions as a raised planter, raw irrigation moisture inside the box will rapidly push alkaline salts through the block and blister exterior stucco paint. We coat the entire interior cavity with a heavy-duty elastomeric waterproofing membrane and install a perforated drain pipe over washed 3/4-inch gravel at the base.
4. Fiberglass Mesh-Embedded Smooth Stucco & Elastomeric Finish
On the exterior facets, we apply a scratch and brown coat reinforced with alkali-resistant fiberglass mesh to prevent hairline corner cracking, followed by a crisp white acrylic finish coat that contrasts dramatically against the warm brown bullnose coping caps.
2026 San Diego Cost Breakdown: Custom Stucco Planters, Fire Pits & Seat Walls
Here is what San Diego homeowners can expect to invest in 2026 for custom CMU stucco masonry structures with precast bullnose coping:
| Masonry Feature | Engineering & Finish Specification | 2026 San Diego Installed Cost |
|---|---|---|
| Custom Octagonal Stucco Planter Box | 5 ft. – 6 ft. diameter, CMU core, interior waterproofing, mitered bullnose caps | $3,800 – $5,600 |
| Octagonal Stucco Gas Fire Pit Enclosure | Includes 120,000 BTU stainless burner, gas line stub, lava rock/fire glass & bullnose caps | $4,900 – $7,800 |
| Single-Tier Stucco Seat Wall with Bullnose Caps | 18" – 24" height, reinforced footing, smooth acrylic stucco & precast coping | $240 – $340 per linear ft. |
| Two-Tier Stepped Stucco Retaining & Planter Wall | 36" – 48" total elevation with integrated planting terrace & dual bullnose coping rows | $420 – $590 per linear ft. |
| Custom Porcelain / Flagstone Tiled Corner Steps | Mortared over concrete step core with bullnose edge trim | $950 – $1,850 per step assembly |
Why Precast Bullnose Coping Caps Outperform Stucco-Over-Top Edges
Leaving the top horizontal ledge of a stucco planter or seat wall finished in bare plaster is a recipe for chipped corners and water intrusion within two winters. By crowning every wall and octagonal box with high-density precast concrete bullnose caps:
- Drip-Edge Protection: The 1.5-inch overhang sheds rainwater away from the vertical white stucco facade, preventing dirty runoff streaks.
- Ergonomic Seating Comfort: The smooth, rounded radius of a bullnose cap supports the back of the knees comfortably when guests sit around the courtyard.
- Architectural Contrast: Pairing warm earthy brown or charcoal caps with bright white coastal stucco anchors the structure visually to surrounding wood gazebos and patio tile.
Want to add a custom octagonal stucco planter, gas fire pit, or tiered seat wall system to your San Diego backyard? Schedule your free design-build consultation with Hardscape Flow or explore our Retaining Walls & Masonry services today.
Frequently Asked Questions
How much does a custom octagonal stucco planter or fire pit with bullnose coping cost in San Diego in 2026?
In 2026, a custom-built reinforced CMU octagonal stucco planter box or gas fire pit enclosure finished with diamond-mitered precast concrete bullnose coping caps in San Diego typically costs between $3,800 and $7,500 depending on diameter, wall height, internal waterproofing, and gas burner integration.
What angle do you cut bullnose coping caps for an octagonal planter or fire pit?
A true regular octagon has eight 135-degree interior corners, which requires wet-saw diamond miter cuts at a precise 22.5-degree angle on both mating bullnose cap pieces so the rounded overhang aligns seamlessly around all eight facets.
How do you prevent moisture and efflorescence from blistering stucco raised planters?
Before backfilling an octagonal CMU stucco planter with soil, we apply a two-coat elastomeric bituminous or crystalline negative-side waterproofing membrane across the interior block walls and install dedicated weep drainage at the footing base so irrigation water never wicks through the exterior acrylic stucco finish.
