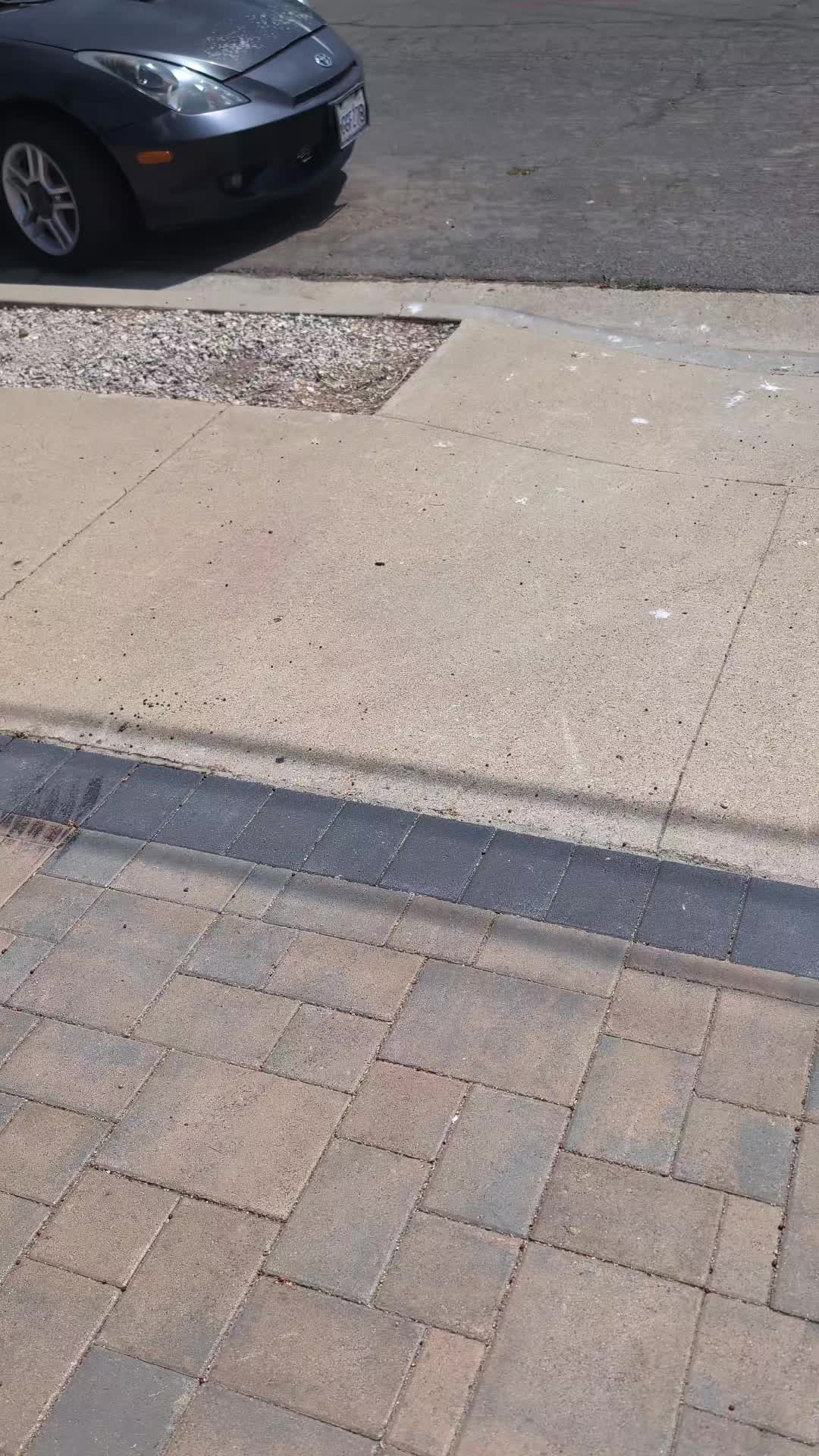

The highest-stress zone on any residential driveway is the exact line where turning SUVs, delivery trucks, and daily commuters roll off the concrete street apron onto the private driveway surface. If that transition joint is poorly compacted or lacks a structural header course, tires will quickly cause edge spalling, rutting, and trip hazards. In this close-up field inspection video, our Hardscape Flow team showcases a textbook interlocking paver driveway to broom-finished concrete sidewalk & apron transition in San Diego—highlighted by a precision dark charcoal cobble soldier course border.
Why the Driveway-to-Sidewalk Transition Joint Makes or Breaks Your Installation
When homeowners upgrade a cracked asphalt or old concrete driveway to interlocking pavers in San Diego County, the municipal right-of-way (comprising the rolled or flared street curb cut, the sloped approach apron, and the 4-foot-wide ADA pedestrian sidewalk) must remain broom-finished concrete per city engineering standards. Where private property begins—right behind the back edge of the public sidewalk—is where the interlocking paver field starts.
Look closely at the engineering details visible in this project video:
- Zero-Lip Flush Elevation: The top surface of the dark charcoal soldier course pavers sits 100% flush (within 1/16 inch) of the freshly troweled and broom-finished concrete sidewalk control joint. Tires roll smoothly across the threshold without jarring impacts that loosen pavers over time.
- Contrasting Charcoal Cobble Soldier Course Header: Rather than running cut field pavers directly into the concrete edge, we frame the entire perimeter of the driveway—including the street entrance and side yard concrete walkways—with a dedicated charcoal rectangle soldier course. This acts as both a high-visibility visual frame and a structural lock that distributes braking and turning shear forces laterally across the width of the driveway.
- Three-Piece Modular Field Pattern with Polymeric Joint Stabilization: Inside the charcoal border, three-piece tumbled gray-and-taupe concrete pavers are laid in an interlocking pattern that eliminates continuous long seam lines in the direction of tire travel, then consolidated with vibratory plate compaction and sealed with polymer-modified jointing sand.
Our 5-Step Vehicular Edge Restraint Protocol at Concrete Transitions
How does Hardscape Flow guarantee that the first row of driveway pavers next to the sidewalk will never sink, tip, or separate?
Step 1: 10-to-12-Inch Vehicular Excavation & Sub-Grade Compaction
Standard patio excavation (4 inches of base) will fail under a 6,000-lb electric SUV or pickup truck. For San Diego driveways, we excavate 10 to 12 inches below finished grade, compact the native sub-soil, and lay non-woven geotextile separation fabric where expansive clay is present.
Step 2: 8 Inches of Compacted Class II Road Base Right to the Concrete Face
Teams often neglect compaction in the narrow 6-inch strip right against an existing concrete sidewalk. We compact 3/4-inch minus Class II aggregate base in two 4-inch lifts using both a reversible plate compactor and a vertical jumping-jack tamper directly along the vertical concrete face so there are zero soft voids at the entrance.
Step 3: Reinforced Concrete Haunch or Mortar Bed Under the Header Row
At the threshold where vehicle tires transition from rigid poured concrete to flexible segmental pavers, we set the charcoal soldier course header over a concealed fiber-reinforced concrete haunch or polymer-modified mortar bed anchored against the sidewalk edge.
Step 4: Precision Diamond Wet-Saw Relief Cuts
Notice along the right-hand side of the video where the driveway curves and meets the adjacent broom-finished concrete walkway: every angled field paver meeting the charcoal soldier course is wet-saw cut with a tight 1/8-inch joint spacing—no wide mortar-stuffed gaps or sliver triangles that snap under tire weight.
Step 5: Dual-Pass Plate Compaction & Polymeric Sand Activation
Before activating the polymeric sand, we run a high-centrifugal-force urethane-pad roller compactor across the pavers to seat them into the 1-inch washed concrete bedding sand, then sweep and mist commercial-grade polymeric sand that cures into a flexible, weed-free, erosion-proof joint lock.
2026 San Diego Paver Driveway & Concrete Apron Pricing Guide
Thinking about replacing a cracked concrete driveway in San Diego? Here are realistic 2026 turnkey costs for residential driveway reconstruction:
| Driveway / Concrete Scope | Engineering Specification | 2026 San Diego Cost Range |
|---|---|---|
| Interlocking Paver Driveway (Vehicular Spec) | Demo existing concrete, 8" Class II base, 60mm–80mm pavers, charcoal soldier border & polymeric sand | $22 – $32 per sq. ft. |
| Typical 2-Car Paver Driveway (600 – 800 sq. ft.) | Complete turnkey demolition, base prep, pavers & border | $14,500 – $23,500 |
| Broom-Finished Concrete Sidewalk & Approach Apron | 6" thick 4,000 PSI concrete with #4 rebar grid at driveway approach | $18 – $26 per sq. ft. ($2,800 – $5,500 total) |
| Contrasting Soldier Course Double Border Upgrade | Dual charcoal + tan cobble frame around perimeter | +$14 – $22 per linear ft. |
| Breathable Joint-Stabilizing Paver Sealer | Commercial pressure wash, polymeric touch-up & 2-coat urethane/acrylic sealer | $2.75 – $4.25 per sq. ft. |
Ready to Upgrade Your San Diego Driveway & Curb Appeal?
Whether you need a complete concrete-to-paver driveway transformation, a new broom-finished concrete approach apron, or coordinated raised block planter walls, Hardscape Flow engineers every project for lifetime structural performance. Book your free driveway estimate today or explore our San Diego Driveway Paver Services.
Frequently Asked Questions
Why do San Diego paver driveways transition to poured concrete at the street apron and sidewalk?
City of San Diego and local municipal public right-of-way codes require the street curb cut, driveway approach apron, and public pedestrian sidewalk to be poured with broom-finished Portland cement concrete meeting city thickness and ADA cross-slope standards, while the private property portion of the driveway is upgraded with interlocking concrete pavers.
How do you stop driveway pavers from sinking or shifting where they meet the concrete sidewalk apron?
We excavate 10 to 12 inches deep for vehicular loads, compact 8 inches of Class II aggregate base to 95% Proctor density right up against the vertical concrete apron face, set a mortared or concrete-haunched dark charcoal soldier course header row flush with the concrete lip, and lock all joints with commercial polymeric sand.
How much does a paver driveway with a charcoal soldier course and new concrete apron cost in San Diego in 2026?
In 2026, installing a vehicular-grade interlocking paver driveway with a contrasting charcoal soldier course border in San Diego costs $22 to $32 per square foot, while replacing a poured concrete municipal driveway apron and sidewalk section typically ranges from $2,800 to $5,500 including curb-cut grading and broom finishing.
