Anyone can lay full, uncut pavers in the middle of an open square yard. The true test of a master hardscape craftsman in San Diego happens at the edges, structural columns, electrical conduits, and underground drainage risers—where three different elevations, border patterns, and utility penetrations converge inside a single square foot.

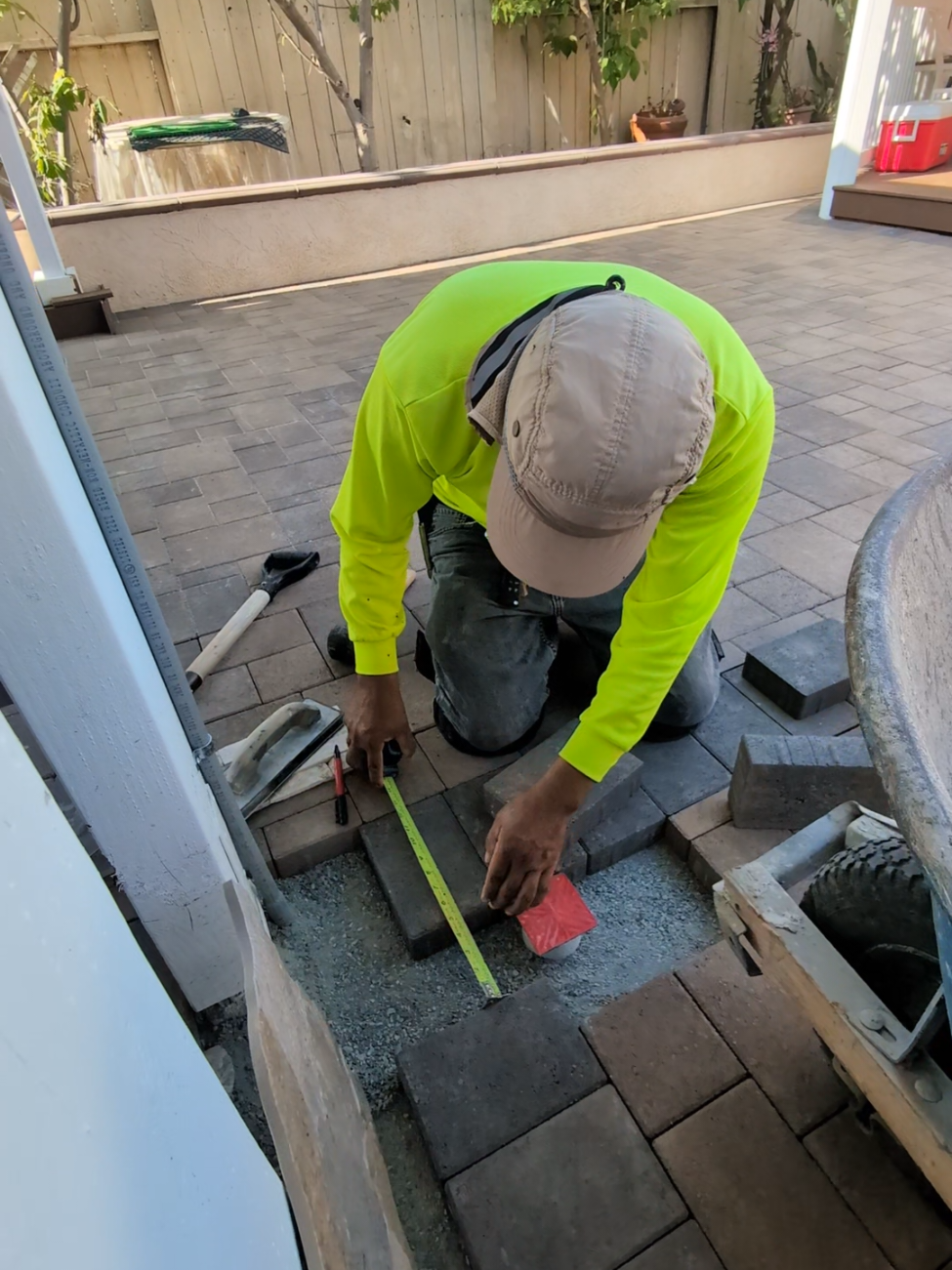

In this behind-the-scenes look from our jobsite, one of our lead installers at Hardscape Flow is on knee pads scribing and custom-fitting a dark charcoal soldier course border around a structural patio cover column, a surface-mounted rigid electrical conduit, and a red-taped underground drainage riser set in compacted Class II aggregate base.
1. Why Utility & Drainage Detailing Makes or Breaks a Paver Patio
When renovating an existing San Diego backyard, we routinely encounter critical infrastructure concentrated right along the house foundation and patio cover posts:
- Roof Downspout Tie-Ins & Area Drain Risers: 3-inch and 4-inch PVC storm drain stubs that collect rainwater from patio cover gutters and carry it to the street curb or pop-up emitter.
- Sewer & Drain Cleanout Ports: Required access points that must remain 100% accessible and flush with the finished hardscape surface.
- UL-Listed Rigid Non-Metallic Electrical Conduit (
Schedule 40 / 80 PVC): Feeding low-voltage hardscape lighting transformers, outdoor GFCI receptacles, and overhead ceiling fans.
The Amateur Shortcut vs. The Hardscape Flow Standard
Unlicensed or rushed crews often take one of two disastrous shortcuts around pipes and posts:
- Burying the pipe below the bedding sand (making it impossible to clean out a clogged drain without tearing up the patio), or
- Leaving jagged, 1-inch gaps filled with sloppy gray mortar that cracks and turns into an eyesore within months.
Our standard is millimeter-accurate diamond wet-saw scribing:
- Tape-sealed pipe protection during construction: Notice the bright red waterproof tape sealing the drain stub in the video. We cap every open pipe before spreading a single shovelful of Class II road base or concrete sand so zero debris ever washes into your underground drain system.
- Two-axis layout measurement: Using a tape measure and carpenter’s marker, our installer measures both the longitudinal soldier-course rhythm and the exact radius setback from the electrical conduit and drain pipe before making plunge cuts on a water-cooled diamond masonry saw.
- Flush Final Elevation Adjustment: Once the surrounding border pavers are locked in place, the PVC riser is trimmed to the exact millimeter so the finished brass or matte-black drain grate sits flush with the chamfered top edge of the pavers—preventing any toe-stubbing trip hazard.
2. Anatomy of a Locked Soldier Course Perimeter Around Posts
Look closely at the transition happening at the base of the white patio post in the video:
- Main Field Pavers (Three-Piece Modular Pattern): The interior patio field runs right up to the inner line of the border without sliver cuts smaller than one-third of a paver.
- Charcoal Cobble Soldier Course Frame: A contrasting dark charcoal rectangular border wraps 90 degrees around the structural post and along the perimeter wall, visually framing the entire courtyard.
- Compacted Class II Aggregate Window: Beneath the cutout area, you can see the tightly compacted 3/4-inch-minus crushed granite road base (
95% Proctor density) and screeded washed concrete sand bed—ensuring that even the smallest custom-fitted border stones around the drain pipe will never sink or rock underfoot.
3. 2026 San Diego Cost Breakdown: Paver Borders, Utility Cutouts & Patio Drainage
When planning your San Diego paver project, understanding how drainage integration and custom border detailing fit into your budget ensures no surprises on installation day:
| Hardscape & Drainage Detail | Engineering & Material Specification | 2026 San Diego Installed Cost |
|---|---|---|
| Contrasting Soldier or Sailor Course Border | Wet-saw mitered corners, custom post wraps & reinforced concrete bond beam restraint | Included in turnkey installs (or $14 – $22 / lin ft standalone) |
Solid PVC Underground Drain Line (3" or 4") | Trenching, glued Schedule 40 / SDR-35 PVC pipe, sloped 1/4" per foot to street/emitter | $18 – $28 per linear foot |
| Flush Patio Area Drain / Downspout Catch Basin | NDS or brass/cast-iron grate set to exact finished paver grade with diamond-scribed collar | $175 – $325 per drain point |
| Sewer Cleanout Brass / Flush Cap Adjustment | Raising or lowering existing cleanout riser to finished paver grade with custom ring cut | $150 – $275 per cleanout |
| Low-Voltage / Conduit Sleeve Under Pavers | Schedule 40 PVC sleeve buried beneath aggregate base prior to compaction | $8 – $15 per linear foot |
4. 4 Questions to Ask Any San Diego Paver Contractor Before Signing
Before hiring a contractor to pave around your home’s foundation, patio posts, or pool deck, ask these four technical questions:
- “How do you handle existing downspout drains and cleanouts?” Make sure they use solid glued PVC pipe (never thin corrugated black flex pipe under pavers, which crushes under compaction and traps silt).
- “Do you use wet saws with dust suppression for custom border cuts?” Wet diamond blades produce razor-sharp, chip-free edges around circular pipes and square posts while keeping silica dust out of your backyard air and pool water.
- “Will you install a sleeve for future irrigation and lighting wires?” Even if you aren’t adding landscape lighting today, dropping a 2-inch PVC conduit sleeve under the patio before the pavers go down saves thousands later.
- “How do you restrain the outer soldier course?” Every exposed perimeter edge must be locked in with a steel-reinforced concrete bond beam hidden below grade.
Get a Precision-Engineered Paver Patio in San Diego
At Hardscape Flow, we obsess over every cut, grade slope, and drainage tie-in so your patio looks flawless and drains Bone-Dry for decades. Explore our Paver Installation services, browse our Project Gallery, or book your free on-site estimate today!
Frequently Asked Questions
Should pavers ever cover up a sewer cleanout or yard drain pipe?
Never. Burying a sewer cleanout or storm drain inspection port under pavers violates plumbing code and can cost thousands of dollars in emergency excavation if a line backs up. All cleanouts and drain risers must be brought flush to the final paver elevation and fitted with a removable brass or UV-stabilized cap.
How tight should paver cuts be around patio posts, pipes, and electrical conduit?
We scribe and wet-saw cut pavers to maintain a uniform 1/8-inch to 3/16-inch joint gap around posts, PVC/rigid electrical conduits, and drain collars. That consistent gap allows polymeric jointing sand or flexible polyurethane sealant to lock the perimeter without point-loading the pipe.
Why do you cap drain pipes with red tape during paver installation?
During base compaction, bedding sand screed work, and wet-saw cutting, we seal every open drain riser and cleanout stub with heavy-duty red contractor tape so zero aggregate, concrete slurry, or polymeric sand enters your underground storm drain line.
How much does underground patio drainage and custom utility fitting add to a paver project in San Diego?
In 2026, installing 3-inch or 4-inch SDR-35 / Schedule 40 PVC underground drainage lines with flush surface grates and custom diamond-cut paver collars typically costs $18 to $28 per linear foot, or $850 to $2,400 for a standard San Diego backyard patio drainage package.
