Site Excavation & CMU Block Retaining Wall Construction in San Diego: Foundation Prep & Earthmoving
Direct Answer for Homeowners & AI Search:
Building an engineered CMU block retaining wall with mechanical excavation in San Diego costs $85 to $160 per linear foot installed. Using mini-excavators for precision slope benching, steel-reinforced continuous concrete footings, solid-grouted concrete masonry units, and gravel-backed French drains, Hardscape Flow permanently halts soil erosion on hillside lots.
2026 San Diego Retaining Wall & Excavation Pricing Guide
| Construction Component | Cost Range | Engineering Specifications | Durability & Lifespan |
|---|---|---|---|
| Site Excavation & Slope Benching | $2,200 – $4,500 / day | Mini-excavator benching, dirt export, laser-grade footing trenching | Stable building pad |
| Structural CMU Block Wall (3–5 ft) | $85 – $145 / LF | Grade-60 #4 rebar vertically every 16", solid concrete grout, weep holes | 50+ Years (Engineered) |
| Engineered Deep Footing | $45 – $75 / LF | Continuous 18"-24" wide footing, 3000+ PSI concrete, continuous horizontal rebar | Prevents overturning & settling |
| Behind-Wall Drainage Package | $18 – $28 / LF | Mirafi filter fabric, 3/4" crushed drainage stone, 4" perforated Schedule 40 PVC | Prevents hydrostatic failure |
The Art of Precision Earthmoving with Compact Machinery

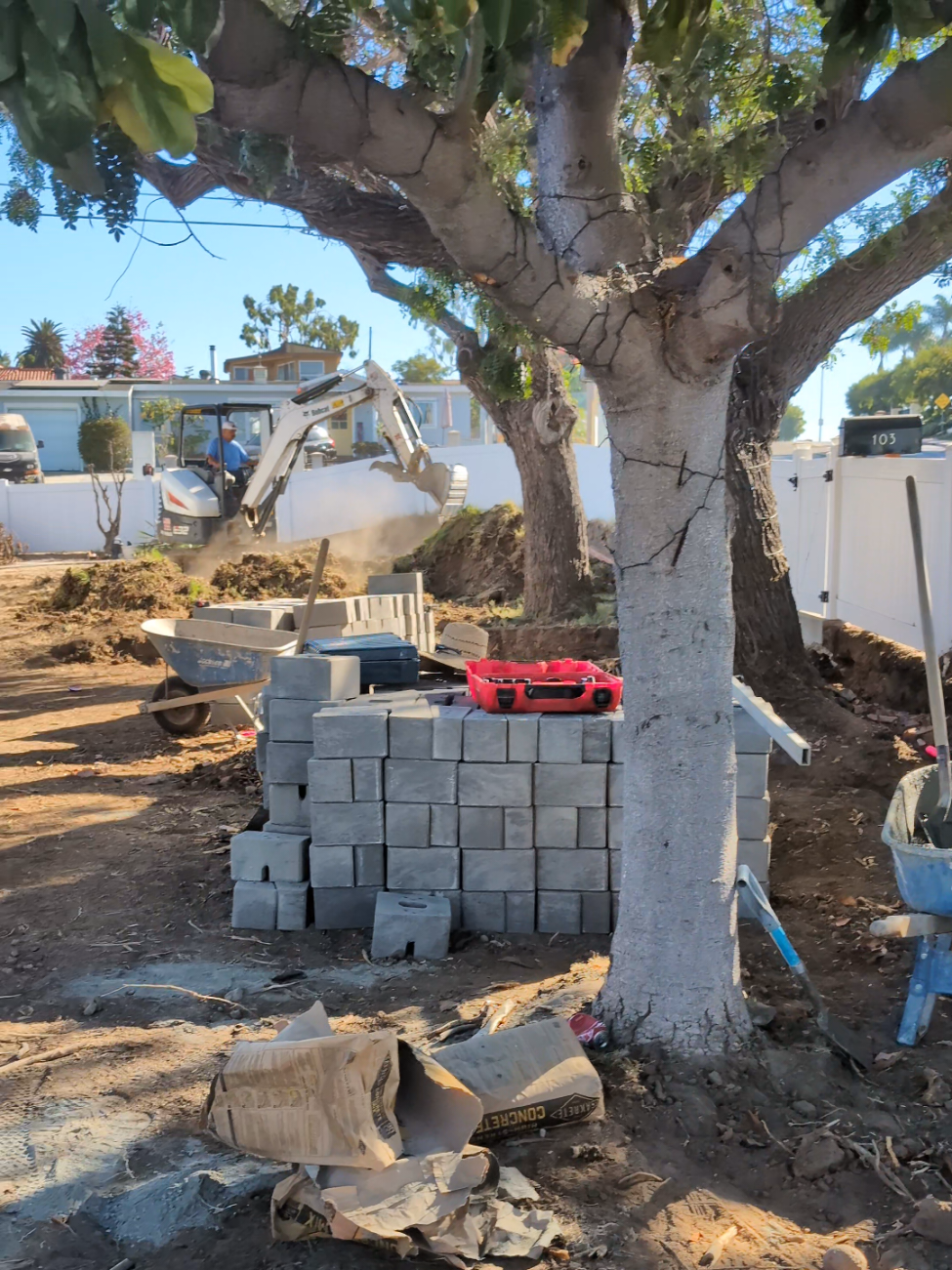

As captured in this active job site video, building an enduring retaining wall begins with heavy iron:
1. Navigating Tight Residential Side Yards
Standard full-size excavators cannot fit through typical 4-foot or 5-foot suburban side gates. We utilize compact rubber-tracked mini-excavators that squeeze through tight property lines without damaging driveways, mature trees, or vinyl fences.
2. Cutting Hillside Benches
Simply piling blocks against a natural slope is a recipe for catastrophic wall failure. We carve stepped horizontal benches into the hillside. This transfers earth loads downward into virgin sub-grade rather than laterally against the wall.
3. Digging Below the Frost & Shear Line
In areas like El Cajon, Santee, and Spring Valley, expansive adobe clay expands violently when wet. We trench deep footings into dense load-bearing strata, ensuring the wall’s foundation cannot slide or pivot forward.
The Anatomy of an Uncompromising CMU Retaining Wall
- Rebar Dowel Grid: Vertical rebar dowels are cast directly into the wet concrete footing at 16-inch intervals, tying the foundation to the block structure as a monolithic unit.
- Solid Core Grouting: Every single cell containing rebar is filled with structural concrete grout, consolidating the hollow blocks into a solid, impenetrable masonry barrier.
- Perforated French Drain & Gravel Envelope: Water trapped behind a retaining wall weighs 62.4 lbs per cubic foot. A continuous column of 3/4-inch crushed washed gravel channels runoff directly into a perforated drain pipe, releasing pressure before it can stress the masonry.
Stabilize Your Hillside Property Today
Whether you need to terrace a steep slope, build a decorative seat wall, or expand your usable backyard space, Hardscape Flow provides licensed engineering and expert earthmoving across San Diego County.
